Traffic rotaries
Lecture notes in Transportation Systems Engineering
3 August 2009
Rotary intersections or round abouts are special form of at-grade intersections
laid out for the movement of traffic in one direction around a central traffic
island.
Essentially all the major conflicts at an intersection namely the collision
between through and right-turn movements are converted into milder conflicts
namely merging and diverging.
The vehicles entering the rotary are gently forced to move in a clockwise
direction in orderly fashion.
They then weave out of the rotary to the desired direction.
The benefits, design principles, capacity of rotary etc. will be discussed in
this chapter.
The key advantages of a rotary intersection are listed below:
- Traffic flow is regulated to only one direction of movement, thus
eliminating severe conflicts between crossing movements.
- All the vehicles entering the rotary are gently forced to reduce the
speed and continue to move at slower speed.
Thus, none of the vehicles need to be stopped,unlike in a signalized
intersection.
- Because of lower speed of negotiation and elimination of severe
conflicts, accidents and their severity are much less in rotaries.
- Rotaries are self governing and do not need practically any control by
police or traffic signals.
- They are ideally suited for moderate traffic, especially with irregular
geometry, or intersections with more than three or four approaches.
Although rotaries offer some distinct advantages, there are few specific
limitations for rotaries which are listed below.
- All the vehicles are forced to slow down and negotiate the intersection.
Therefore, the cumulative delay will be much higher than channelized
intersection.
- Even when there is relatively low traffic, the vehicles are forced to
reduce their speed.
- Rotaries require large area of relatively flat land making them costly at
urban areas.
- The vehicles do not usually stop at a rotary.
They accelerate and exit the rotary at relatively high speed.
Therefore, they are not suitable when there is high pedestrian movements.
Because of the above limitation, rotaries are not suitable for every location.
There are few guidelines that help in deciding the suitability of a rotary.
They are listed below.
- Rotaries are suitable when the traffic entering from all the four
approaches are relatively equal.
- A total volume of about 3000 vehicles per hour can be considered as the
upper limiting case and a volume of 500 vehicles per hour is the lower limit.
- A rotary is very beneficial when the proportion of the right-turn traffic
is very high; typically if it is more than 30 percent.
- Rotaries are suitable when there are more than four approaches or if
there is no separate lanes available for right-turn traffic.
Rotaries are ideally suited if the intersection geometry is complex.
As noted earlier, the traffic operations at a rotary are three; diverging,
merging and weaving.
All the other conflicts are converted into these three less severe conflicts.
- Diverging: It is a traffic operation when the vehicles moving in
one direction is separated into different streams according to their
destinations.
- Merging: Merging is the opposite of diverging.
Merging is referred to as the process of joining the traffic coming from
different approaches and going to a common destination into a single stream.
- Weaving: Weaving is the combined movement of both merging and
diverging movements in the same direction.
These movements are shown in figure 1.
Figure 1:
Traffic operations in a rotary
 |
It can be observed that movements from each direction split into
three; left, straight, and right turn.
The design elements include design speed, radius at entry, exit and the central
island, weaving length and width, entry and exit widths.
In addition the capacity of the rotary can also be determined by using some
empirical formula.
A typical rotary and the important design elements are shown in
figure 2
Figure 2:
Design of a rotary
 |
All the vehicles are required to reduce their speed at a rotary.
Therefore, the design speed of a rotary will be much lower than the roads
leading to it.
Although it is possible to design roundabout without much speed reduction, the
geometry may lead to very large size incurring huge cost of construction.
The normal practice is to keep the design speed as 30 and 40 kmph for urban and
rural areas respectively.
The radius at the entry depends on various factors like design speed,
super-elevation, and coefficient of friction.
The entry to the rotary is not straight, but a small curvature is introduced.
This will force the driver to reduce the speed.
The entry radius of about 20 and 25 metres is ideal for an urban and rural
design respectively.
The exit radius should be higher than the entry radius and the radius of
the rotary island so that the vehicles will discharge from the rotary at a
higher rate.
A general practice is to keep the exit radius as 1.5 to 2 times the entry
radius.
However, if pedestrian movement is higher at the exit approach, then the exit
radius could be set as same as that of the entry radius.
The radius of the central island is governed by the design speed, and the
radius of the entry curve.
The radius of the central island, in practice, is given a slightly higher
radius so that the movement of the traffic already in the rotary will have
priority.
The radius of the central island which is about 1.3 times that of the entry
curve is adequate for all practical purposes.
The entry width and exit width of the rotary is governed by the traffic
entering and leaving the intersection and the width of the approaching road.
The width of the carriageway at entry and exit will be lower than the width of
the carriageway at the approaches to enable reduction of speed.
IRC suggests that a two lane road of 7 m width should be kept as 7 m for urban
roads and 6.5 m for rural roads.
Further, a three lane road of 10.5 m is to be reduced to 7 m and 7.5 m
respectively for urban and rural roads.
The width of the weaving section should be higher than the width at entry and
exit.
Normally this will be one lane more than the average entry and exit width.
Thus weaving width is given as,
 |
(1) |
where
is the width of the carriageway at the entry and
is the
carriageway width at exit.
Weaving length determines how smoothly the traffic can merge and diverge.
It is decided based on many factors such as weaving width, proportion of
weaving traffic to the non-weaving traffic etc.
This can be best achieved by making the ratio of weaving length to the weaving
width very high.
A ratio of 4 is the minimum value suggested by IRC.
Very large weaving length is also dangerous, as it may encourage over-speeding.
The capacity of rotary is determined by the capacity of each weaving section.
Transportation road research lab (TRL) proposed the following empirical formula
to find the capacity of the weaving section.
![\begin{displaymath}
Q_w = \frac{280 w [1+\frac{e}{w}][1-\frac{p}{3}]}{1+\frac{w}{l}}
\end{displaymath}](img6.gif) |
(2) |
where
is the average entry and exit width, i.e,
,
is the weaving width,
is the length of weaving, and
is the proportion
of weaving traffic to the non-weaving traffic.

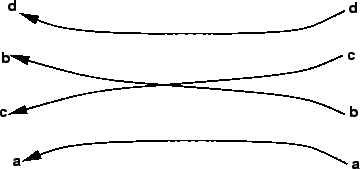

Figure 3 shows four types of movements at a weaving section,
and
are the non-weaving traffic and
and
are the weaving traffic.
Figure 3:
Weaving operation in a rotary
 |
Therefore,
 |
(3) |
This capacity formula is valid only if the following conditions are satisfied.
- Weaving width at the rotary is in between 6 and 18 metres.
- The ratio of average width of the carriage way at entry and exit to the
weaving width is in the range of 0.4 to 1.
- The ratio of weaving width to weaving length of the roundabout is in
between 0.12 and 0.4.
- The proportion of weaving traffic to non-weaving traffic in the rotary is
in the range of 0.4 and 1.
- The weaving length available at the intersection is in between 18 and
90 m.

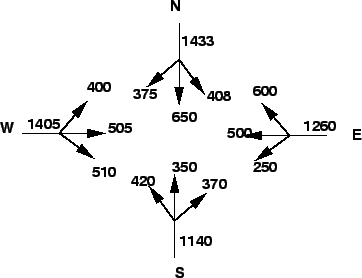

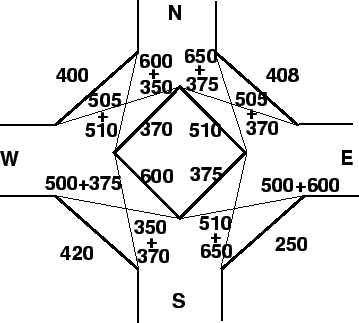

The width of a carriage way approaching an intersection is given as 15 m.
The entry and exit width at the rotary is 10 m.
The traffic approaching the intersection from the four sides is shown in the
figure 4 below.
Figure 4:
Traffic approaching the rotary
 |
Find the capacity of the rotary using the given data.
Traffic rotaries reduce the complexity of crossing traffic by forcing them into
weaving operations.
The shape and size of the rotary are determined by the traffic volume and share
of turning movements.
Capacity assessment of a rotary is done by analyzing the section having the
greatest proportion of weaving traffic.
The analysis is done by using the formula given by TRL.
- The width of approaches for a rotary intersection is 12 m. The entry and
exit width at the rotary is 10 m. Table below gives the traffic from the four
approaches, traversing the intersection. Find the capacity of the rotary.
Approach |
Left turn |
Straight |
Right turn |
North |
400 |
700 |
300 |
South |
350 |
370 |
420 |
East |
200 |
450 |
550 |
West |
350 |
500 |
520 |
- The traffic from the four approaches negotiating through the roundabout
is illustrated in figure 7.
Figure 7:
Traffic negotiating a rotary
 |
- Weaving width is calculated as, w =
= 13.5 m
- Weaving length can be calculated as, l = 4
w = 54 m
- The proportion of weaving traffic to the non-weaving traffic in all the
four approaches is found out first.
- It is clear from equation,that the highest proportion of
weaving traffic to non-weaving traffic will give the minimum capacity.
Let the proportion of weaving traffic to the non-weaving traffic in West-North
direction be denoted as
, in North-East direction as
, in the
East-South direction as
, and finally in the South-West direction as
.
Then using equation,
=
=
=0.816
=
=
=0.69
=
=
=0.676
=
=
=0.630

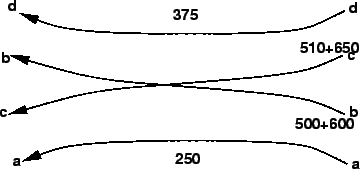

- Thus the proportion of weaving traffic to non-weaving traffic is highest
in the East-South direction.
- Therefore, the capacity of the rotary will be the capacity of this
weaving section.
From equation,
= 380.56veh/hr.
